High power quasi-continuous semiconductor laser (QCWLD) pumped high repetition rate electro-optic Q-switch multi-wavelength Nd:YAG laser. It is the most widely used laser in lidar at present. It can output 1064nm, 532nm and 355nm three-wavelength nanosecond laser pulses.The laser can select multiple wavelengths to work. The 1064nm band of the laser can be used to detect reflected light signal of objects on the ground, and the 532nm band is used for underwater target detection. The multi-wavelength Nd:YAG laser has very important value and economic benefit.

Applications

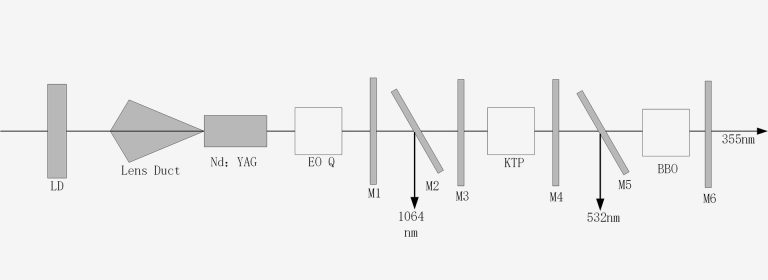

The main components of device are:

LD——Using the quasi-continuous laser diode surface array end-pumped Nd:YAG crystal, the peak power of the LD is 800W.Resonant cavity——The cavity is a flat-flat cavity structure with a cavity length of 26cm Laser medium——One the end of the crystal is coated with a multilayer dielectric film which is high-reflective to 1064 nm, high transmittance to 808 nm pumping light, and the other end is coated with an antireflection film to 1064nm light.M1, M4, and M6——output mirrors for laser three-wavelength 1064nm, 532nm, and 355nm, respectively.
