Laser crystals can convert the energy supplied from the outside into highly parallel and monochromic laser crystals with spatial and temporal coherence through optical resonators. It is the working substance of crystal laser.The laser crystal consists of two parts: the luminescence center and the matrix crystal.The luminescence center of most laser crystals is composed of activated ions which replace the cations in matrix crystals to form doped laser crystals.When activated ions become part of the matrix crystal components, they form a self-activated laser crystal.

Following are laser crystals owned by Laser-crylink

If there is no laser crystal you need in the website list, please contact us for customization.

Customize my own product
The active ions used in laser crystals are mainly transition metal ions and trivalent rare earth ions. The optical electrons of transition metal ions are 3d electrons located in the outer layer. In crystals, these optical electrons are susceptible to the direct effect of the surrounding crystal field. Therefore, their spectral characteristics vary greatly among crystals with different structure types. The 4f electron of trivalent rare earth ions is shielded by 5S and 5p outer electrons, which weakens the effect of crystal field. However, the perturbation of crystal field makes it possible for the forbidden 4f electron transition to produce narrow band absorption and fluorescence lines. So the spectra of trivalent rare earth ions in different crystals do not change as much as those of transition metal ions.The matrix crystals used in laser crystals are mainly oxides and fluorides. As a matrix crystal, besides its stable physical and chemical properties, it is easy to grow large-sized crystals with good optical uniformity and low cost. However, the adaptability between matrix cations and active ions, such as radius, electronegativity and valence state of matrix cations and active ions, should be considered as close as possible. In addition, the effect of matrix crystal field on the spectra of activated ions should also be considered. For some matrix crystals with special functions, laser with certain characteristics can be produced directly by doping activated ions. For example, in some non-linear crystals, laser generated by activated ions can be directly converted into harmonic output through matrix crystals.

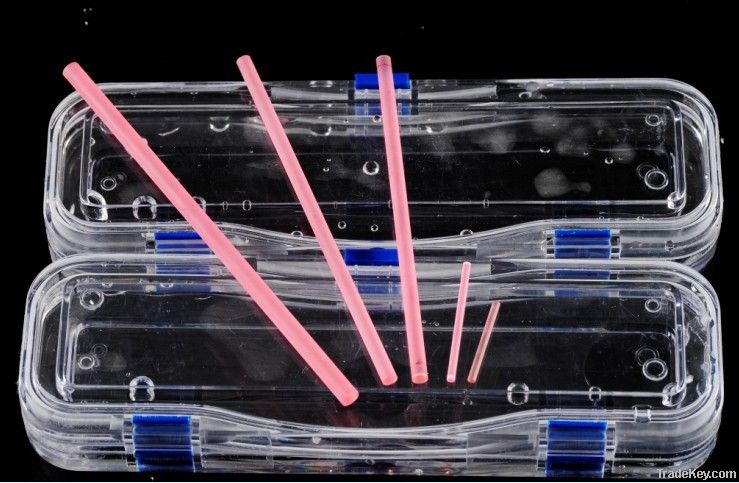

Er:YAG

Er:YAG

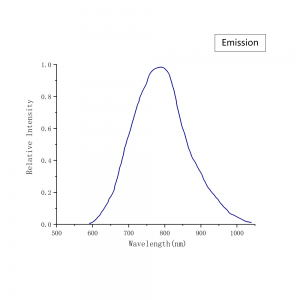

Titanium-doped sapphire (Ti3+:sapphire) as an opti
Laser Wavelength660-1200 nm
Central emission800 nm
Turnable Absorption Band400-600 nm
Absorption peak488 nm
Emission Cross Section @ 790 nm41 × 10-20 cm2
Fluorescence Lifetime3.2 ms
Emission Linewidth650-1100 nm
Refractive Index @633 nm1.77@ 532 nm; 1.76@800 nm; 1.75@1100 nm
Absorption Coefficient0.5~6.0 cm-1
<font style=Er:YAG">
<font style=Er:YAG">

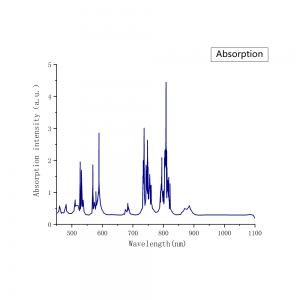

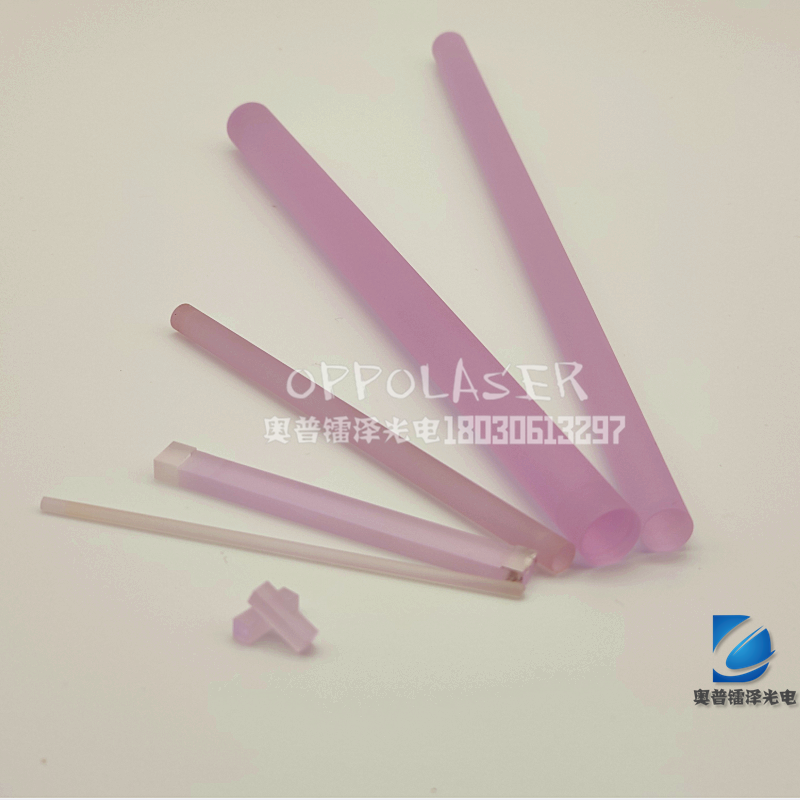

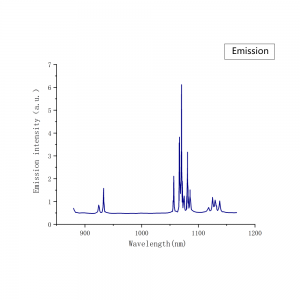

Nd:YAG

Nd:YAG
Nd Concentration Tolerance (atm%)0.1- 2.5(+/-0.1)atm%
Orientation[001] or [110] or [111] <±0.5°
Parallelism10〞
Perpendicularity
Surface Quality10-5(MIL-O-13830A)
Wavefront Distortionλ/4@632 nm
Surface Flatnessλ/8@632 nm
Clear Aperture>95 %
Chamfer<0.2×45°
Length Tolerance+0.5/-0mm
Thickness/Diameter Tolerance±0.05 mm
Maximum Dimensionsdia (1~20)×(0.1~220) mm
Damage Threshold>2500MW/cm2@1064 nm 10 ns 10 Hz
Chips<0.1 mm
Extinction Ratio>30 dB(depends on actual sizes )
Barrel Finish300 grit


<font style=Nd:YAG">
<font style=Nd:YAG">

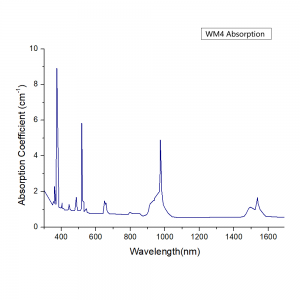

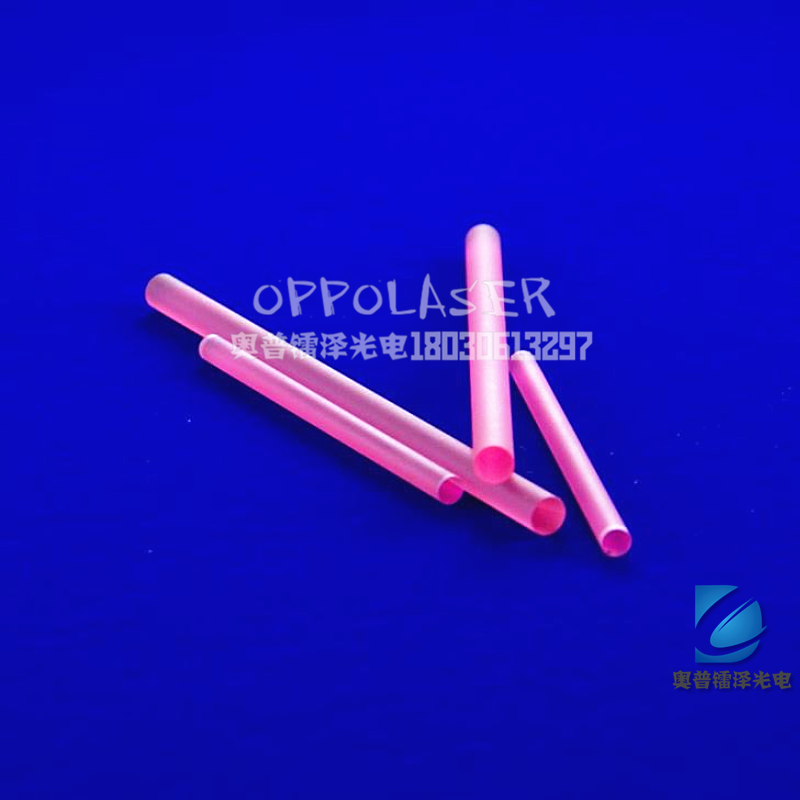

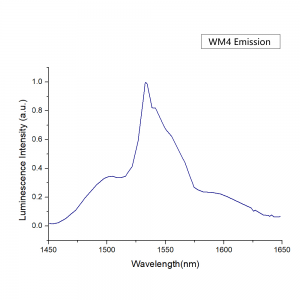

Er,Yb:Glass

Er,Yb:Glass
Er3+/Yb3+co-doped phosphate glass — as the 1540nm

1

           Er: 0.13% , Yb: 22%

2

            Er: 0.26% , Yb: 22%

3

            Er: 0.5% , Yb: 22%

4

          Er: 1.0% , Yb: 22%

5

            Er: 1.3% , Yb: 22%

6

            Er: 1.5% , Yb: 22%

     Other concentration combination are also available upon request


Er,Yb:Glass
Er,Yb:Glass

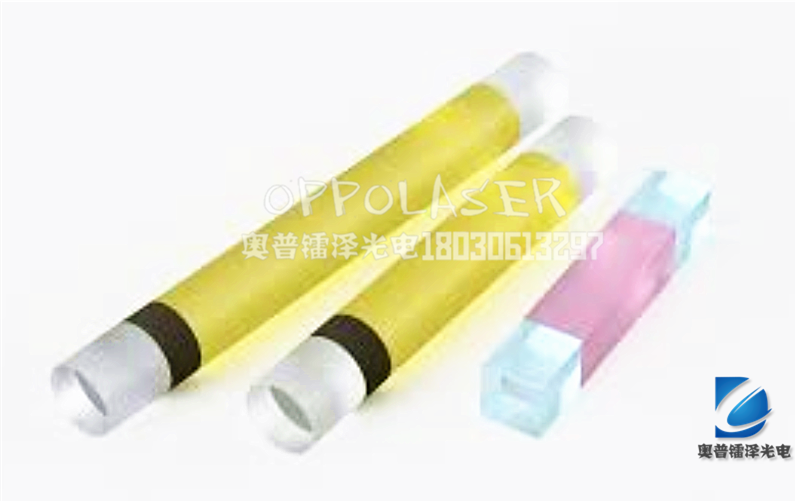

Bonding crystals

Bonding crystals
Bonding (Diffusion bonded)crystals consist of one

Material

Doping concentration(atm)  or Optical Density(cm-1)

Aperture (mm)

Length of laser crystal(mm)

YVO4+ Nd:YVO4 + YVO4

0.1%-3%

1×1-20×20

0.15-30

Φ2-15

YAG+Nd:YAG+ YAG

0.1%-2.5%

1×1-20×20

0.125-200

Φ2-15

YAG+Nd:YAG+Cr4+:YAG

0.1%-2.5%  /  0.6~7

1×1-20×20

0.125-200

Φ2-15

YAG+Nd:Ce:YAG+ Cr4+:YAG

0.6~7

1×1-20×20

0.125-200

Φ2-10

YAG+Yb:YAG+ Cr4+:YAG

1%-45% / 0.6~7

1×1-20×20

0.125-200



Bonding crystals
Bonding crystals

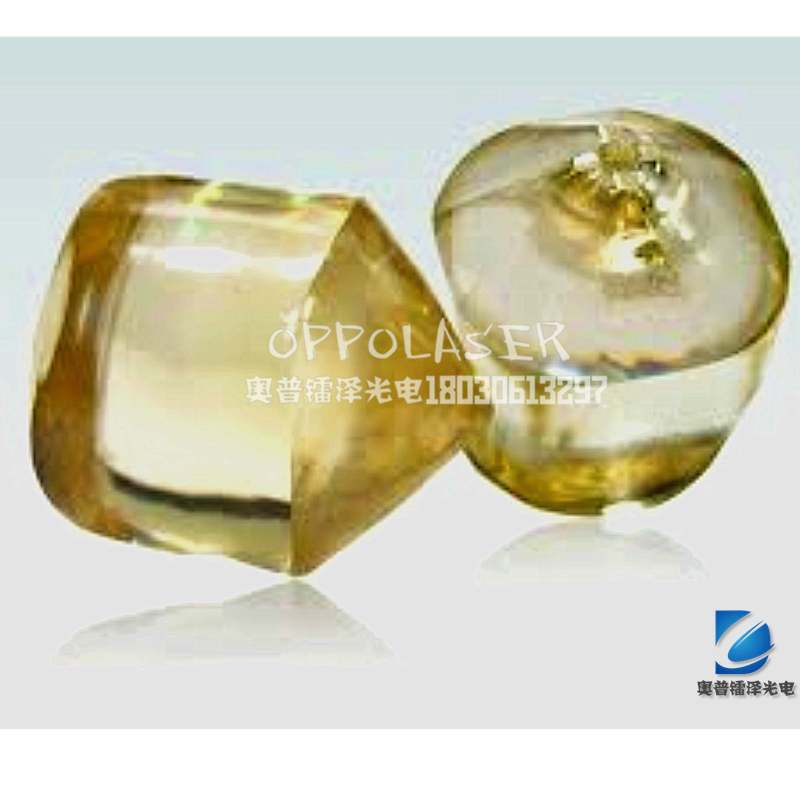

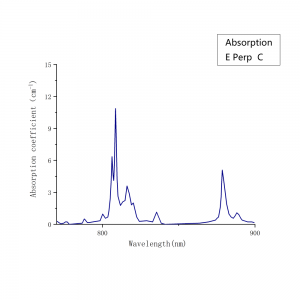

Nd:YVO4

Nd:YVO4
Yb:YAG is a laser crystal which is doped with triv
MaterialsNd: YVO4
Concentration Tolerance (atm%)0.5%, 1.1%, 2.0%, 3.0%
OrientationA-cut or C-cut
Parallelism20〞
Perpendicularity5〞
Surface Quality10/5 Scratch/Dig per MIL-O-13830 B
Wavefront Distortion<λ/8 @633nm
Surface Flatnessλ/10@ 633 nm
Clear Aperture>90%
Chamfer≤0.2mm@450
Dimension Tolerance(W±0.1mm)x(H±0.1mm)x(L+0.2/-0.1mm) (L<2.5mm)
(W±0.1mm)x(H±0.1mm)x(L+0.5/-0.1mm) (L≥2.5mm)
Angle Tolerance≤0.5°
Damage Threshold[GW/cm2 ]>1 for 1064nm, TEM00, 10ns, 10Hz (AR-coated)
CoatingsHR@1064nm+532nm+HT@808nm/AR@1064nm+532nm


Nd:YVO4
Nd:YVO4

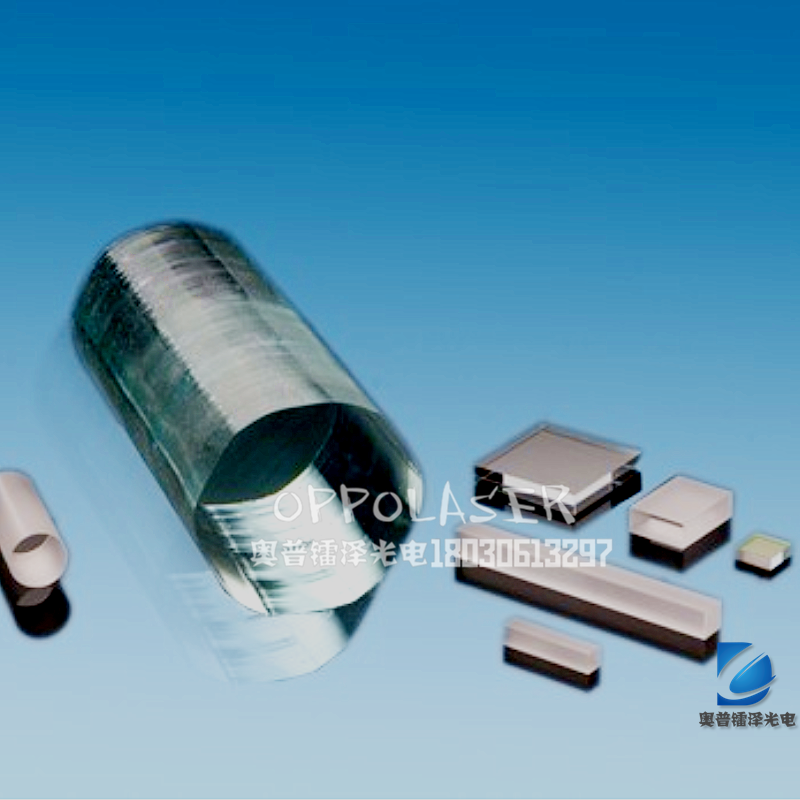

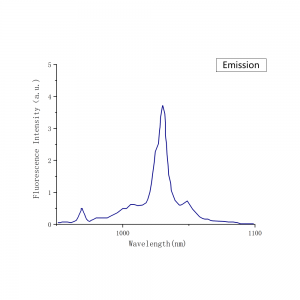

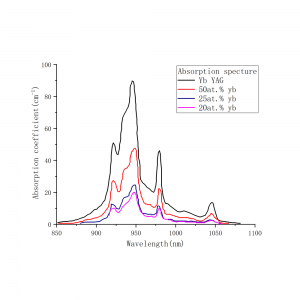

Yb:YAG

Yb:YAG
Yb:YAG is a laser crystal which is doped with triv
MaterialsYb:YAG
Yb Concentration Tolerance (atm%)0.5, 1, 2, 3, 5, 7.5 , 10, 15, 20, 25%
Orientation[001] or [110] or [111] <±0.5°
Parallelism10〞
Perpendicularity
Surface Quality10-5(MIL-O-13830A)
Wavefront Distortionλ/4@632nm
Surface Flatnessλ/8@632nm
Clear Aperture>95%
Chamfer<0.1×45°
Thickness/Diameter Tolerance±0.05 mm
Maximum Dimensionsdia 50×100 mm
CoatingsAR/AR@940+1030;HR@940+AR1030


Yb:YAG
Yb:YAG

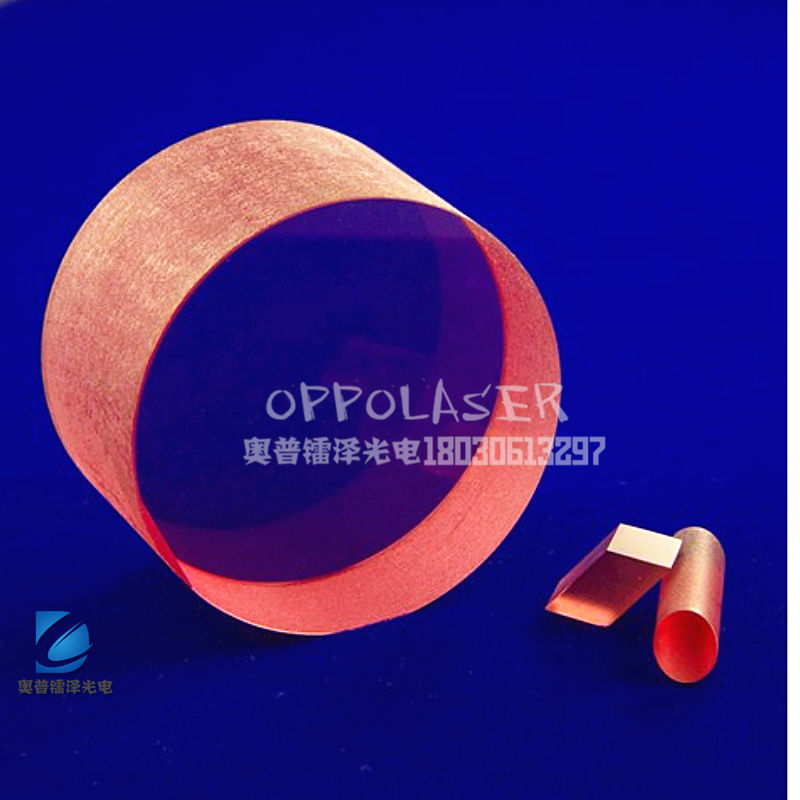

Ti:Sapphire (Titanium Doped Sapphire )

Ti:Sapphire (Titanium Doped Sapphire )
Titanium-doped sapphire (Ti3+:sapphire) as an opti
MaterialsTi3+:Al2O3
Concentration(0.05~0.35) wt%
OrientationA-Axis within 5°,E-vector parallel to C-Axis
Parallelism30〞
Perpendicularity
Figure of Merit(FOM)100~300
Wavefront Distortion<­λ /4@632 nm
Surface Flatness<λ­/8@632 nm
Clear Aperture>90%
Surface Quality10-5(MIL-PRF-13830B)
CoatingsStandard coating is AR with R < 5.0% each
face @532 nm and R < 0.5% each face,
from 650 nm to 850 nm. Custom coatings
Chamfer<0.2×45°


Ti:Sapphire (Titanium Doped Sapphire )
Ti:Sapphire (Titanium Doped Sapphire )

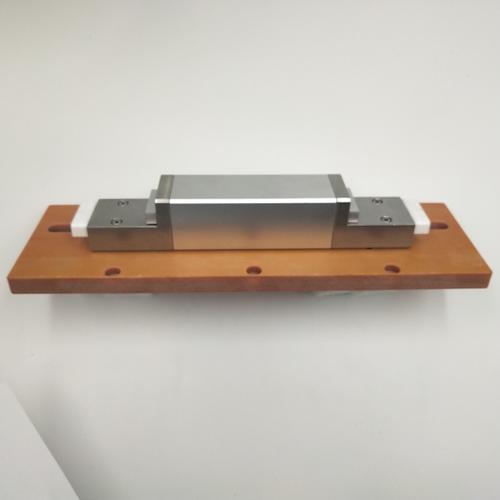

Laser welding laser

Laser welding laser
Product introduction: laser welding is one of the
Laser welding laser
Laser welding laser

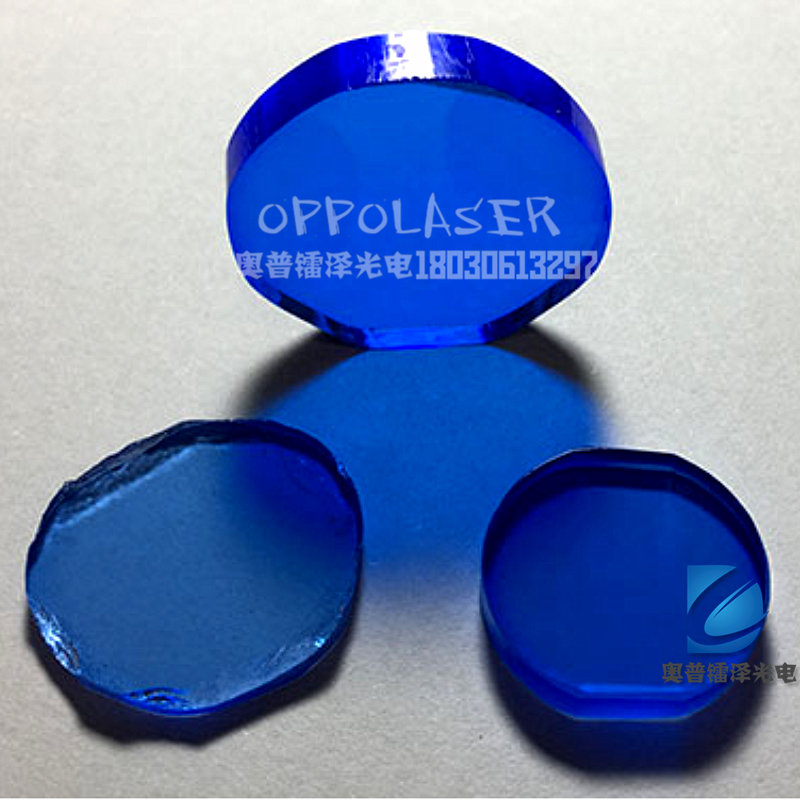

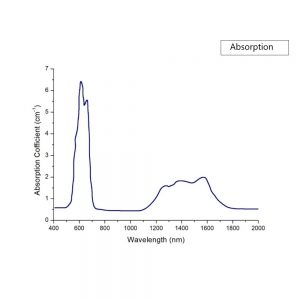

Co:Spinel

Co:Spinel
Cr4+:YAG crystal can be used not only as Q-switch
Chemical formulaCo2+:MgAl2O4
Crystal structureCubic
Lattice parameters8.07Å
Density3.62 g/cm3
Melting Point2105°C
Refractive Indexn=1.6948 @1.54 μm
Thermal Conductivity/(W·cm-1·K-1@25°C)0.033W
Thermal Expansion /(10-6 /°C@25°C )1.046
Specific Heat/ (J·g-1·K-1)5.9
Hardness (Mohs)8.2
Extinction Ratio25dB
Orientation[100] or [111] < ±0.5°
Optical density0.1-0.9
Damage Threshold>500 MW/cm2
Doping concentration of Co2+0.01-0.3 atm%


Co:Spinel
Co:Spinel

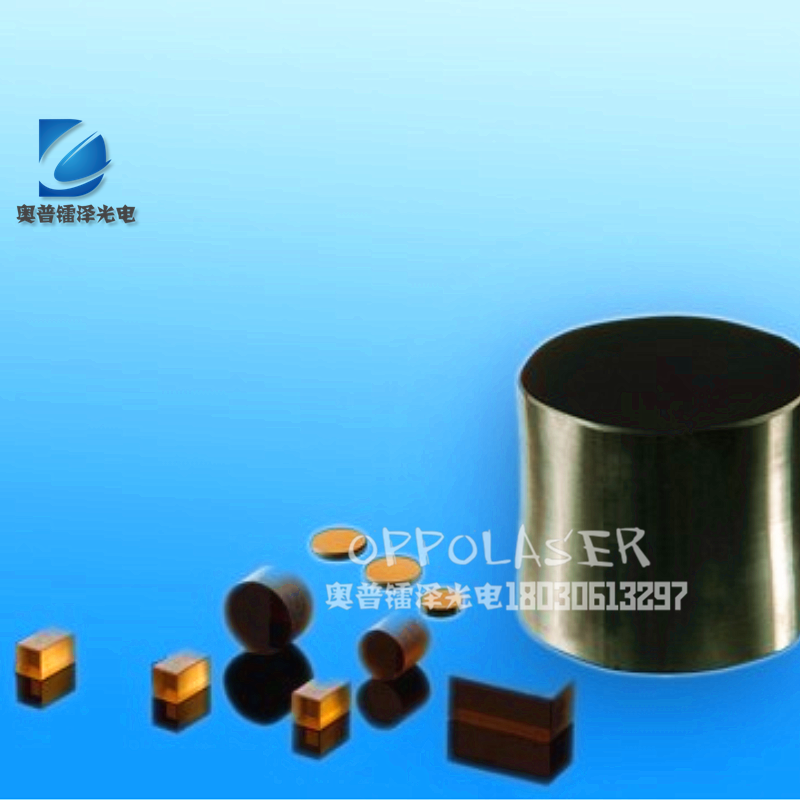

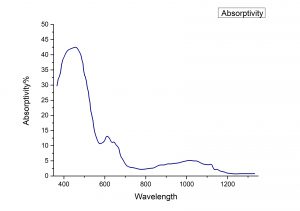

Cr:YAG

Cr:YAG
Chemical formulaCr4+:Y3Al5O12
Crystal structurecubic – la3d
Lattice parameters, Å12.01
Orientation[100] or [110] < ±0.5°
Mass density4.56 g/cm3
Mohs hardness8.5
Young’s modulus335 GPa
Tensile strength2 GPa
Melting point1970°C
Thermal conductivity0.1213
Specific Heat/ (J·g-1·K-1)0.59
Thermal Expansion /(10-6/°C@25°C)7.8 <111>
7.7 <110>
8.2 <100>
Thermal shock resistance parameter800 W/m
Extinction Ratio25dB
Poisson Ratio0.25
Refractive Index @1064 nm1.83
Charge compensating ionCa2+, Mg2+


Cr:YAG
Cr:YAG
